GitHub

Similar to the Source Control Management (SCM) integration plugin, the GitHub integration plugin for Soundcheck provides out-of-box integration with GitHub by leveraging Backstage's GitHub integration to implement extraction and collection of facts from GitHub repositories.

The purpose of the GitHub integration plugin is to provide GitHub-specific fact collection (like branch protections), while the SCM integration plugin provides the collection of facts based on repository content.

The GitHub integration plugin supports the extraction of the following facts:

BranchProtections
BranchRules
RepositoryDetails
RepositoryLanguages

Prerequisites

Configure GitHub integration in Backstage

Integrations are configured at the root level of app-config.yaml. Here's an example configuration for GitHub:

integrations:
  github:
    - host: github.com
      token: ${GITHUB_TOKEN}

Consult the Backstage GitHub integration instructions for full configuration details.

Add the GitHubFactCollector to Soundcheck

GitHub integration for Soundcheck is not installed by default. It must be manually installed and configured for the GitHub Fact Collector to work.

First, add the @spotify/backstage-plugin-soundcheck-backend-module-github package:

yarn workspace backend add @spotify/backstage-plugin-soundcheck-backend-module-github

Then add the following to your packages/backend/src/index.ts file:

packages/backend/src/index.ts
const backend = createBackend();

backend.add(import('@spotify/backstage-plugin-soundcheck-backend'));
backend.add(
  import('@spotify/backstage-plugin-soundcheck-backend-module-github'),
);
// ...

backend.start();

Consult the Soundcheck Backend documentation for additional details on setting up the Soundcheck backend.

Entity configuration

To be able to determine the repository to use the GitHub integration will use the value from the backstage.io/source-location annotation. In many cases this will be set for you but if it is not you will need to add it to your catalog-info.yaml file, here's a simple example:

metadata:
  annotations:
    backstage.io/source-location: url:https://github.com/my-org/my-service/

Plugin Configuration

The collection of facts is driven by configuration. To learn more about the configuration, jump to the Defining GitHub Fact Collectors section.

GitHub Fact Collector can be configured via YAML or No-Code UI. If you configure it via both YAML and No-Code UI, the configurations will be merged. It's preferable to choose a single source for the Fact Collectors configuration (either No-Code UI or YAML) to avoid confusing merge results.

Default Configuration

To add the default initial configuration of GitHub Fact Collector on startup, the following flag must be set to true in the app-config.yaml file:

soundcheck:
  addStartingConfigurations:
    collectors: true

This configuration is required to be able to collect the facts necessary for the pre-canned checks and tracks.

Note: The configuration will be stored in the database and will be configurable via No-Code UI. If you'd like to add this configuration via yaml, you should add the following config instead:

soundcheck:
  collectors:
    github:
      collects:
        - factName: branch_protections
          type: BranchProtections
          cache: false
          filter:
            - kind:
                - Component
              spec.lifecycle:
                - production
          frequency:
            cron: '7 3 * * *'
        - factName: branch_rules
          type: BranchRules
          cache: false
          filter:
            - kind:
                - Component
              spec.lifecycle:
                - production
          frequency:
            cron: '7 9 * * *'
        - factName: repository_details
          type: RepositoryDetails
          cache: false
          filter:
            - kind:
                - Component
              spec.lifecycle:
                - production
          frequency:
            cron: '7 5 * * *'
        - factName: repository_languages
          type: RepositoryLanguages
          cache: false
          filter:
            - kind:
                - Component
              spec.lifecycle:
                - production
          frequency:
            cron: '7 7 * * *'

No-Code UI Configuration Option

Make sure the prerequisite Configure GitHub integration in Backstage is completed and GitHub instance details are configured.

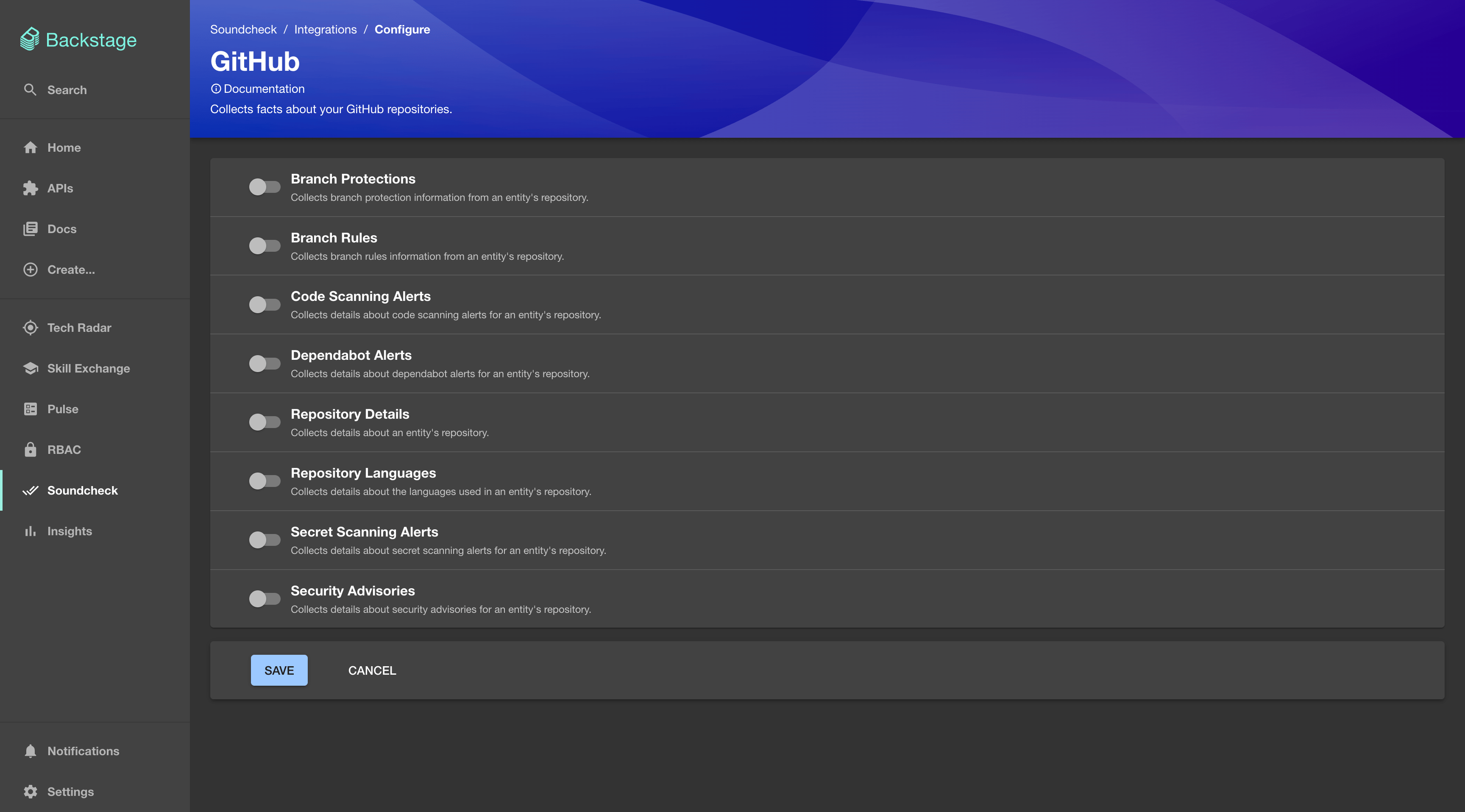

To enable the GitHub Integration, go to Soundcheck > Integrations > GitHub and click the Configure button. To learn more about the No-Code UI config, see the Configuring a fact collector (integration) via the no-code UI.

GitHub Integration

YAML Configuration Option

Create a github-facts-collectors.yaml file in the root of your Backstage repository and fill in all your GitHub Fact Collectors. A simple example GitHub Fact Collector is listed below.
```
---
frequency:
  cron: '0 * * * *'
collects:
  - factName: branch_protections
    type: BranchProtections
  - factName: branch_rules
    type: BranchRules
  - factName: repository_details
    type: RepositoryDetails
  - factName: repository_languages
    type: RepositoryLanguages
```
Note: this file will be loaded at runtime along with the rest of your Backstage configuration files. Therefore, make sure that it's available in deployed environments in the same way as your app-config.yaml files are.

Add a soundcheck collectors field to app-config.yaml and reference the newly created github-facts-collectors.yaml

# app-config.yaml
soundcheck:
  collectors:
    github:
      $include: ./github-facts-collectors.yaml

Rate Limiting (Optional)

This fact collector can be rate limited in Soundcheck using the following configuration:

soundcheck:
  job:
    workers:
      github:
        limiter:
          max: 4900
          duration: 3600000

GitHub API has a limit of 5000 requests per hour (15000 for Enterprise). We recommend setting your rate limit to something below this, i.e. in the example above, we set the rate limit to 4900 executions every hour.

This fact collector handles rate limit errors per the recommendation from GitHub. Soundcheck will automatically wait and retry requests that are rate limited.

Defining GitHub Fact Collectors

This section describes the data shape and semantics of GitHub Fact Collectors.

Overall Shape Of A GitHub Fact Collector

The following is an example of a descriptor file for a GitHub Fact Collector:

---
frequency:
  cron: '0 * * * *'
initialDelay:
  seconds: 30
filter:
  kind: 'Component'
cache:
  duration:
    hours: 2
collects:
  - factName: branch_protections
    type: BranchProtections
    filter:
      - spec.lifecycle: 'production'
        spec.type: 'website'
    cache: false
  - factName: branch_rules
    type: BranchRules
  - factName: repository_details
    type: RepositoryDetails
    cache: true
    exclude:
      - spec.type: 'documentation'
  - factName: repository_languages
    type: RepositoryLanguages

Below are the details for each field.

`frequency` [optional]

The frequency at which the collector should be executed. Possible values are either a cron expression { cron: ... } or HumanDuration. This is the default frequency for each extractor.

`initialDelay` [optional]

The amount of time that should pass before the first invocation happens. Possible values are either a cron expression { cron: ... } or HumanDuration.

`batchSize` [optional]

The number of entities to collect facts for at once. Optional, the default value is 1.

Note: Fact collection for a batch of entities is still considered as one hit towards the rate limits by the Soundcheck Rate Limiting engine, while the actual number of hits will be equal to the batchSize.

Example:

batchSize: 100

`filter` [optional]

A filter specifying which entities to collect the specified facts for. Matches the filter format used by the Catalog API. This is the default filter for each extractor.

See filters for more details.

`exclude` [optional]

Entities matching this filter will be skipped during the fact collection process. Can be used in combination with filter. Matches the filter format used by the Catalog API.

filter:
  - kind: component
exclude:
  - spec.type: documentation

`cache` [optional]

If the collected facts should be cached, and if so for how long. Possible values are either true or false or a nested { duration: HumanDuration } field. This is the default cache config for each extractor.

`collects` [required]

An array describing which facts to collect and how to extract them. See below for details about the overall shape of a fact extractor.

Overall Shape Of A Fact Extractor

Each extractor supports the fields described below.

`factName` [required]

The name of the fact to be extracted.

Minimum length of 1
Maximum length of 100
Alphanumeric with single separator instances of periods, dashes, underscores, or forward slashes

`type` [required]

The type of the extractor (e.g. BranchProtections, RepositoryDetails).

`frequency` [optional]

The frequency at which the fact extraction should be executed. Possible values are either a cron expression { cron: ... } or HumanDuration. If provided, it overrides the default frequency provided at the top level. If not provided, it defaults to the frequency provided at the top level. If neither extractor's frequency, nor default frequency is provided, the fact will only be collected on demand.

Example:

frequency:
  minutes: 10

`batchSize` [optional]

The number of entities to collect facts for at once. Optional, the default value is 1. If provided it overrides the default batchSize provided at the top level. If not provided it defaults to the batchSize provided at the top level. If neither collector's batchSize nor default batchSize is provided the fact will be collected for one entity at a time.

Example:

batchSize: 100

`branch` [optional]

The branch to extract the fact from. If not provided, defaults to the repository's default branch.

`filter` [optional]

A filter specifying which entities to collect the specified facts for. Matches the filter format used by the Catalog API. If provided, it overrides the default filter provided at the top level. If not provided, it defaults to the filter provided at the top level. If neither extractor's filter, nor default filter is provided, the fact will be collected for all entities.

`exclude` [optional]

Entities matching this filter will be skipped during the fact collection process. Can be used in combination with filter. Matches the filter format used by the Catalog API.

filter:
  - kind: component
exclude:
  - spec.type: documentation

`cache` [optional]

If the collected facts should be cached, and if so for how long. Possible values are either true or false or a nested { duration: HumanDuration } field. If provided, it overrides the default cache config provided at the top level. If not provided, it defaults to the cache config provided at the top level. If neither extractor's cache nor default cache config is provided, the fact will not be cached. Example:

cache:
  duration:
    hours: 24

Collecting BranchProtections Fact

The BranchProtections fact contains information about configured branch protections for a given branch in a GitHub repository.

Shape of A BranchProtections Fact Collector

The shape of a BranchProtections Fact Collector matches the Overall Shape Of A GitHub Fact Collector (restriction: type: BranchProtections).

The following is an example of the BranchProtections Fact Collector configuration:

collects:
  - factName: branch_protections
    type: BranchProtections
    frequency:
      cron: '0 * * * *'
    filter:
      - spec.lifecycle: 'production'
        spec.type: 'website'
    cache: false

Shape of A BranchProtections Fact

The shape of a BranchProtections Fact is based on the Fact Schema.

For a description of the data collected regarding branch protection, refer to the GitHub API documentation.

The following is an example of the collected BranchProtections fact:

factRef: github:master/branch_protections
entityRef: component:default/queue-proxy
scope: master
timestamp: 2023-02-24T15:50+00Z
data:
  url: 'https://api.github.com/repos/backstage/backstage/branches/master/protection'
  required_pull_request_reviews:
    url: 'https://api.github.com/repos/backstage/backstage/branches/master/protection/required_pull_request_reviews',
    dismiss_stale_reviews: false
    require_code_owner_reviews: true
    required_approving_review_count: 2
    require_last_push_approval: false
  required_signatures:
    url: 'https://api.github.com/repos/backstage/backstage/branches/master/protection/required_signatures'
    enabled: false
  enforce_admins:
    url: 'https://api.github.com/repos/backstage/backstage/branches/master/protection/enforce_admins'
    enabled: false
  required_linear_history:
    enabled: false
  allow_force_pushes:
    enabled: true
  allow_deletions:
    enabled: true
  block_creations:
    enabled: true
  required_conversation_resolution:
    enabled: false
  lock_branch:
    enabled: false
  allow_fork_syncing:
    enabled: true

Shape of A BranchProtections Fact Check

The shape of a BranchProtections Fact Check matches the Shape of a Fact Check.

The following is an example of the BranchProtections fact checks:

soundcheck:
  checks:
    - id: requires_code_owner_reviews
      rule:
        factRef: github:master/branch_protections
        path: $.required_pull_request_reviews.require_code_owner_reviews
        operator: equal
        value: true
    - id: requires_at_least_two_approving_reviews
      rule:
        factRef: github:master/branch_protections
        path: $.required_pull_request_reviews.required_approving_review_count
        operator: greaterThanInclusive
        value: 2

The following is an example of the Soundcheck program that utilizes these checks:

- id: demo
  name: Demo
  ownerEntityRef: group:default/owning_group
  description: Demonstration of Soundcheck BranchProtections Fact Extractor
  levels:
    - ordinal: 1
      name: First level
      description: Checks leveraging Soundcheck's GitHub BranchProtections Fact Extractor
      checks:
        - id: requires_code_owner_reviews
          name: Requires code owner reviews
          description: PR requires code owner reviews
        - id: requires_at_least_two_approving_reviews
          name: Requires at least two approving reviews
          description: PR requires at least two approving reviews

Collecting BranchRules Fact

The BranchRules fact contains information about configured branch rules for a given branch in a GitHub repository.

Shape of A BranchRules Fact Collector

The shape of a BranchRules Fact Collector matches the Overall Shape Of A GitHub Fact Collector (restriction: type: BranchRules).

The following is an example of the BranchRules Fact Collector configuration:

collects:
  - factName: branch_rules
    type: BranchRules
    frequency:
      cron: '0 * * * *'
    filter:
      - spec.lifecycle: 'production'
        spec.type: 'website'
    cache: false

Shape of A BranchRules Fact

The shape of a BranchRules Fact is based on the Fact Schema.

For a description of the data collected regarding branch rules, refer to the GitHub API documentation.

The following is an example of the collected BranchRules fact:

factRef: github:master/branch_rules
entityRef: component:default/queue-proxy
scope: default
timestamp: 2024-12-10T15:50+00Z
data:
  rules:
    - type: commit_message_pattern
      ruleset_source_type: Repository
      ruleset_source: monalisa/my-repo
      ruleset_id: 42
      parameters:
        operator: starts_with
        pattern: issue
    - type: commit_author_email_pattern
      ruleset_source_type: Organization
      ruleset_source: my-org
      ruleset_id: 73
      parameters:
        operator: contains
        pattern: github

Shape of A BranchRules Fact Check

The shape of a BranchRules Fact Check matches the Shape of a Fact Check.

The following is an example of the BranchRules fact checks:

soundcheck:
  checks:
    - id: commit_message_pattern_is_set
      rule:
        factRef: github:default/branch_rules
        path: $.rules[*].type
        operator: contains
        value: commit_message_pattern
    - id: commit_message_pattern_matches_issues
      rule:
        factRef: github:default/branch_rules
        path: $.rules[?(@.type === 'commit_message_pattern')].parameters.pattern
        operator: matches
        value: .*issues.*

The following is an example of the Soundcheck program that utilizes these checks:

- id: demo
  name: Demo
  ownerEntityRef: group:default/owning_group
  description: Demonstration of Soundcheck BranchRules Fact Extractor
  levels:
    - ordinal: 1
      name: First level
      description: Checks leveraging Soundcheck's GitHub BranchRules Fact Extractor
      checks:
        - id: commit_message_pattern_is_set
          name: Commit message patters is set
          description: Commit message patters is set
        - id: commit_message_pattern_matches_issues
          name: Commit message pattern matches .*issues.*
          description: Commit message pattern matches .*issues.*

Collecting RepositoryDetails Fact

The RepositoryDetails fact contains information about a GitHub repository.

Shape of A RepositoryDetails Fact Collector

The shape of a RepositoryDetails Fact Collector matches the Overall Shape Of A GitHub Fact Collector (restriction: type: RepositoryDetails).

The following is an example of the RepositoryDetails Fact Collector configuration:

collects:
  - factName: repository_details
    type: RepositoryDetails
    frequency:
      cron: '0 * * * *'
    filter:
      - spec.lifecycle: 'production'
    cache: true

Shape of A RepositoryDetails Fact

The shape of a RepositoryDetails Fact is based on the Fact Schema.

For a description of the data collected about repository, refer to the GitHub API documentation.

The following is an example of the collected RepositoryDetails fact:

factRef: github:default/repository_details
entityRef: component:default/queue-proxy
scope: default
timestamp: 2023-02-24T15:50+00Z
data:
  name: backstage
  full_name: backstage/backstage
  private: true
  html_url: 'https://github.com/backstage/backstage'
  description: null
  fork: false
  url: 'https://api.github.com/repos/backstage/backstage'
  homepage: null
  size: 3
  stargazers_count: 0
  watchers_count: 0
  language: null
  has_issues: true
  has_projects: true
  has_downloads: true
  has_wiki: true
  has_pages: false
  has_discussions: false
  forks_count: 0
  mirror_url: null
  archived: false
  disabled: false
  open_issues_count: 0
  license: null
  allow_forking: true
  is_template: false
  web_commit_signoff_required: false
  visibility: 'private'
  forks: 0
  open_issues: 0
  watchers: 0
  default_branch: master
  permissions:
    admin: true
    maintain: true
    push: true
    triage: true
    pull: true
  allow_squash_merge: true
  allow_merge_commit: true
  allow_rebase_merge: true
  allow_auto_merge: false
  delete_branch_on_merge: false
  allow_update_branch: false
  use_squash_pr_title_as_default: false
  squash_merge_commit_message: 'COMMIT_MESSAGES'
  squash_merge_commit_title: 'COMMIT_OR_PR_TITLE'
  merge_commit_message: 'PR_TITLE'
  merge_commit_title: 'MERGE_MESSAGE'
  security_and_analysis:
    secret_scanning:
      status: 'disabled'
    secret_scanning_push_protection:
      status: 'disabled'
  network_count: 0
  subscribers_count: 1

Shape of A RepositoryDetails Fact Check

The shape of a RepositoryDetails Fact Check matches the Shape of a Fact Check.

The following is an example of the RepositoryDetails fact checks:

soundcheck:
  checks:
    - id: allows_rebase_merge
      rule:
        factRef: github:default/repository_details
        path: $.allow_rebase_merge
        operator: equal
        value: true
    - id: has_less_than_ten_open_issues
      rule:
        factRef: github:default/repository_details
        path: $.open_issues
        operator: lessThan
        value: 10

The following is an example of the Soundcheck program that utilizes these checks:

- id: demo
  name: Demo
  ownerEntityRef: group:default/owning_group
  description: Demonstration of Soundcheck RepositoryDetails Fact Extractor
  levels:
    - ordinal: 1
      name: First level
      description: Checks leveraging Soundcheck's GitHub RepositoryDetails Fact Extractor
      checks:
        - id: allows_rebase_merge
          name: Allows Rebase Merge
          description: Repository allows rebase merge
        - id: has_less_than_ten_open_issues
          name: Has Less Than 10 Open Issues
          description: GitHub Repository Has Less Than 10 Open Issues

Collecting RepositoryLanguages Fact

The RepositoryLanguages fact contains information about languages used in a GitHub repository.

Shape of A RepositoryLanguages Fact Collector

The shape of a RepositoryLanguages Fact Collector matches the Overall Shape Of A GitHub Fact Collector (restriction: type: RepositoryLanguages).

The following is an example of the RepositoryLanguages Fact Collector configuration:

collects:
  - factName: repository_languages
    type: RepositoryLanguages
    frequency:
      cron: '0 * * * *'
    filter:
      - spec.lifecycle: 'production'
    cache: true

Shape of A RepositoryLanguages Fact

The shape of a RepositoryLanguages Fact is based on the Fact Schema.

For a description of the data collected about repository languages, refer to the GitHub API documentation.

The following is an example of the collected RepositoryLanguages fact:

factRef: github:default/repository_languages
entityRef: component:default/queue-proxy
scope: default
timestamp: 2023-02-24T15:50+00Z
data:
  C: 78769
  Python: 7769

Shape of A RepositoryLanguages Fact Check

The shape of a RepositoryLanguages Fact Check matches the Shape of a Fact Check.

The following is an example of the RepositoryLanguages fact checks:

soundcheck:
  checks:
    - id: uses_python
      rule:
        factRef: github:default/repository_languages
        path: $.Python
        operator: greaterThan
        value: 0
    - id: uses_java
      rule:
        factRef: github:default/repository_languages
        path: $.Java
        operator: greaterThan
        value: 0

The following is an example of the Soundcheck program that utilizes these checks:

- id: demo
  name: Demo
  ownerEntityRef: group:default/owning_group
  description: Demonstration of Soundcheck RepositoryLanguages Fact Extractor
  levels:
    - ordinal: 1
      name: First level
      description: Checks leveraging Soundcheck's GitHub RepositoryLanguages Fact Extractor
      checks:
        - id: uses_python
          name: Uses Python
          description: Uses Python
        - id: uses_java
          name: Uses Java
          description: Uses Java

Prerequisites​

Configure GitHub integration in Backstage​

Add the GitHubFactCollector to Soundcheck​

Entity configuration​

Plugin Configuration​

Default Configuration​

No-Code UI Configuration Option​

YAML Configuration Option​

Rate Limiting (Optional)​

Defining GitHub Fact Collectors​

Overall Shape Of A GitHub Fact Collector​

frequency [optional]​

initialDelay [optional]​

batchSize [optional]​

filter [optional]​

exclude [optional]​

cache [optional]​

collects [required]​

Overall Shape Of A Fact Extractor​

factName [required]​

type [required]​

frequency [optional]​

batchSize [optional]​

branch [optional]​

filter [optional]​

exclude [optional]​

cache [optional]​

Collecting BranchProtections Fact​

Shape of A BranchProtections Fact Collector​

Shape of A BranchProtections Fact​

Shape of A BranchProtections Fact Check​

Collecting BranchRules Fact​

Shape of A BranchRules Fact Collector​

Shape of A BranchRules Fact​

Shape of A BranchRules Fact Check​

Collecting RepositoryDetails Fact​

Shape of A RepositoryDetails Fact Collector​

Shape of A RepositoryDetails Fact​

Shape of A RepositoryDetails Fact Check​

Collecting RepositoryLanguages Fact​

Shape of A RepositoryLanguages Fact Collector​

Shape of A RepositoryLanguages Fact​

Shape of A RepositoryLanguages Fact Check​

Prerequisites

Configure GitHub integration in Backstage

Add the GitHubFactCollector to Soundcheck

Entity configuration

Plugin Configuration

Default Configuration

No-Code UI Configuration Option

YAML Configuration Option

Rate Limiting (Optional)

Defining GitHub Fact Collectors

Overall Shape Of A GitHub Fact Collector

`frequency` [optional]

`initialDelay` [optional]

`batchSize` [optional]

`filter` [optional]

`exclude` [optional]

`cache` [optional]

`collects` [required]

Overall Shape Of A Fact Extractor

`factName` [required]

`type` [required]

`frequency` [optional]

`batchSize` [optional]

`branch` [optional]

`filter` [optional]

`exclude` [optional]

`cache` [optional]

Collecting BranchProtections Fact

Shape of A BranchProtections Fact Collector

Shape of A BranchProtections Fact

Shape of A BranchProtections Fact Check

Collecting BranchRules Fact

Shape of A BranchRules Fact Collector

Shape of A BranchRules Fact

Shape of A BranchRules Fact Check

Collecting RepositoryDetails Fact

Shape of A RepositoryDetails Fact Collector

Shape of A RepositoryDetails Fact

Shape of A RepositoryDetails Fact Check

Collecting RepositoryLanguages Fact

Shape of A RepositoryLanguages Fact Collector

Shape of A RepositoryLanguages Fact

Shape of A RepositoryLanguages Fact Check
