The Soundcheck Entity Tab is an element of the Soundcheck plugin that provides a detailed view of an entity’s technical health as defined by the Tracks and Checks that apply to the entity. The Entity Tab is found on the entity’s overview page in Backstage:
Entity Soundcheck Tab
In the sample image above, the Soundcheck Entity Tab is shown for the sample entity ‘Queue Proxy’, and we can see that there are two tracks which apply to the entity: the ‘Test Certified’ and ‘Golden State for Web’ tracks. Let’s take a closer look at the ‘Test Certified’ track:

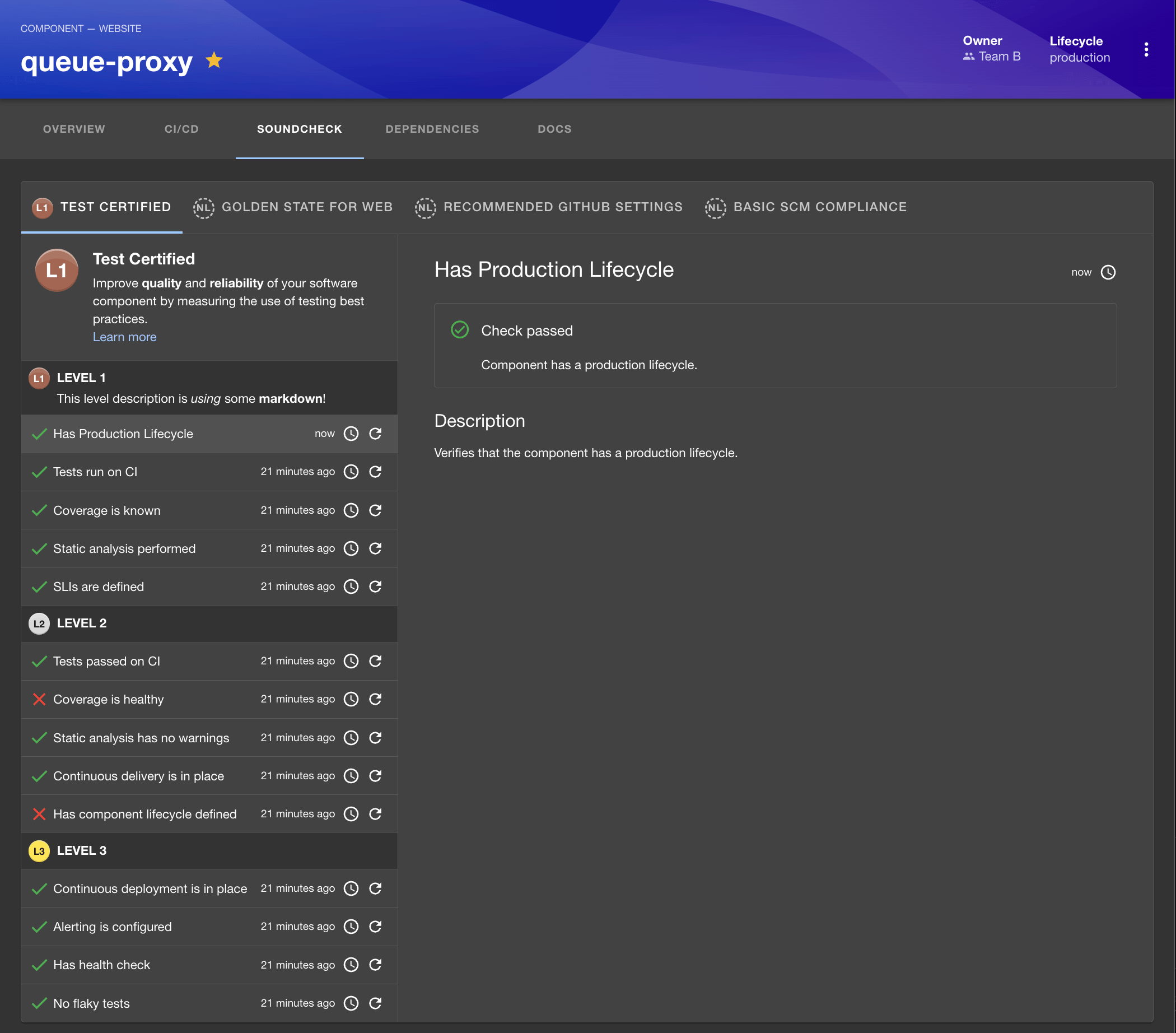

Entity Track Details
The ‘Test Certified’ track has achieved the level one badge, and we can easily see the checks that make up the levels of this Track, along with their statuses and the last time each check was performed against this entity. Selecting a check will display the details of the check on the right side of the page, we can see in the image above that the ‘Has Production Lifecycle’ check is passing, and was checked less than a minute ago. Each check has a refresh icon ⟳, which when clicked will execute the check immediately (only for the displayed entity, which owns the Soundcheck Entity Tab). The facts that the check depends on will be freshly collected regardless of whether fact caching is enabled or not. Notice that all the checks in level three of this Track are passing, but because two checks in level two have failed, the entity is only certified at level one. For more information on Checks, Tracks, and Levels, see the corresponding sections in the Soundcheck Core-Concepts section of this guide.
