This Integration is available in Portal only, please head here to learn more about the Data Registry.
The Data Registry fact collector is installed by default on Portal and exposes information from Portals’s Data Registry as facts to Soundcheck. Before configuring the collector, ensure the Data Registry itself has been enabled and configured. This collector enables the creation of checks against metadata stored inside the Registry, to ensure that it is in compliance with your organization’s standards and best practices. It supports the collection of the following fact:
  • dataset-schema - contains schema information about dataset entities.

​
Prerequisites

​
Configure Data Registry in Backstage

The dataset-schema fact is typically only applicable to Catalog entities with Kind:Api and Type:dataset, which are programmatically ingested by the Data Registry. To make full use of this collector, be sure to configure some dataset integrations.

​
Data Registry Fact Collector Configuration

The collection of Data Registry facts is driven by configuration. To learn more about the configuration, consult the Defining Data Registry Fact Collections section. Similar to other collectors, Data Registry Fact Collector can be configured via YAML or No-Code UI. If you configure it via both YAML and No-Code UI, the configurations will be merged. It’s preferable to choose a single source for the Fact Collectors configuration (either No-Code UI or YAML) to avoid confusing merge results. Since this collector is designed for Portal, the No-Code UI is the easiest option, as YAML isn’t configurable within the Portal site.

​
No-Code UI Configuration

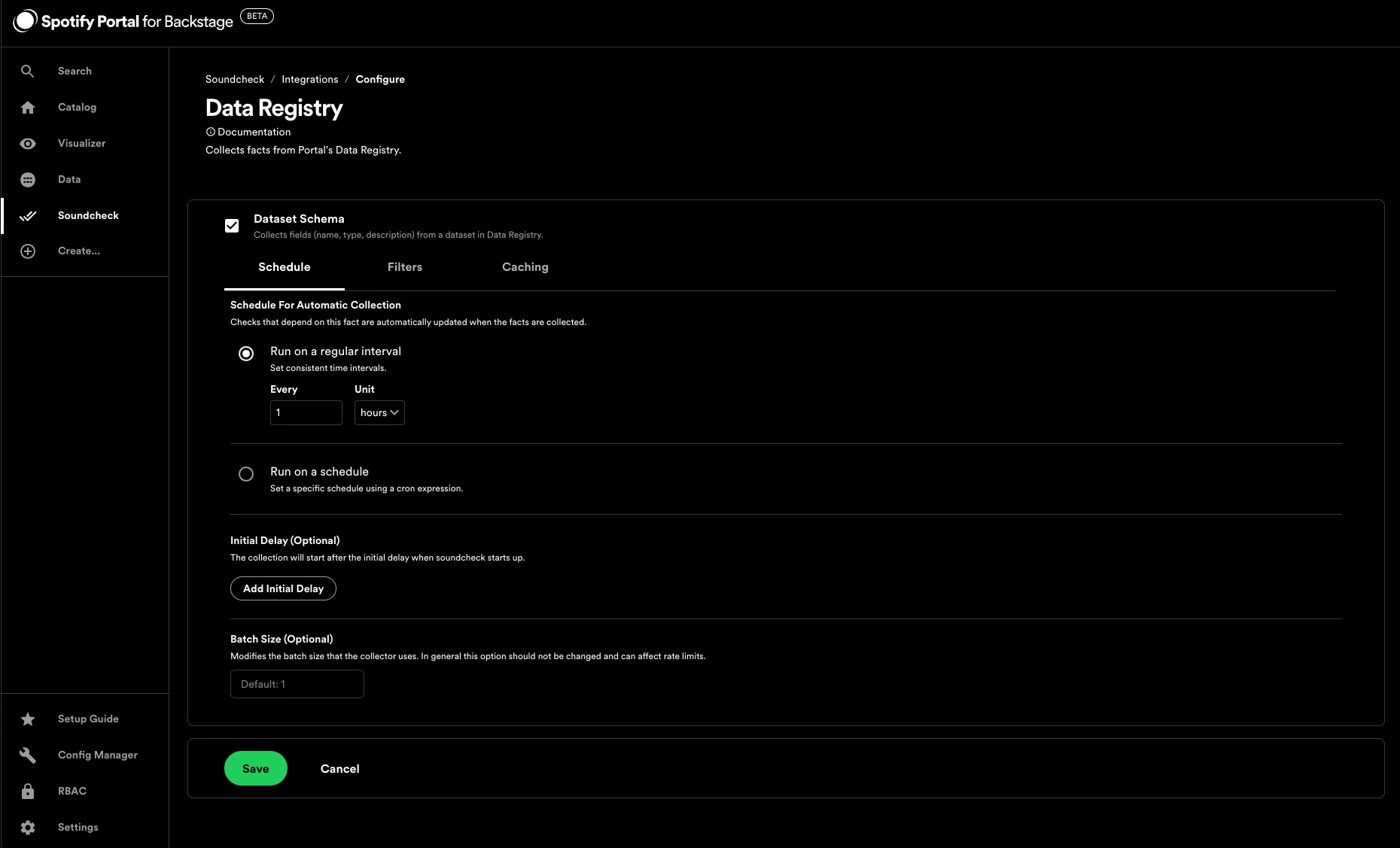

To enable the Data Registry Integration, go to Soundcheck > Integrations > Data Registry and click the Configure button. To learn more about the No-Code UI config, see the Configuring a fact collector (integration) via the no-code UI. By default, the dataset-schema check is filtered to Kind:Api, Type:dataset entities, and runs on a one hour interval.
Registry Integration

​
YAML Configuration Option

Add a soundcheck.collectors.date-registry.collects field to the app-config.yaml. A simple example Catalog fact collector is listed below.
# app-config.yaml
soundcheck:
  collectors:
    data-registry:
      collects:
        type: 'dataset-schema'
        filter:
          - spec.type: 'dataset'
        frequency:
          hours: 1
        cache: false

​
Defining Data Registry Fact Collections

This section describes the data shape and semantics of Data Registry Fact Collection configurations.

​
Shape Of A Data Registry Fact Collection Configuration

The following is an example of a Data Registry Fact Collection Configuration in YAML:
soundcheck:
  collectors:
    data-registry:
      collects:
        type: 'dataset-schema'
        filter:
          kind: api
          spec.type: dataset
        cache: false
Below are the details for each field.

​
type [required]

The type of the collector: dataset-schema.

​
frequency [optional]

The frequency at which the fact collection should be executed. Possible values are either a cron expression { cron: ... } or HumanDuration. If not provided, the fact will only be collected on demand. Example:
frequency:
  minutes: 10

​
initialDelay [optional]

The amount of time that should pass before the first invocation happens. Possible values are either a cron expression { cron: ... } or HumanDuration. Example:
initialDelay:
  seconds: 30

​
batchSize [optional]

The number of entities to collect facts for at once. Optional, the default value is 1. Example:
batchSize: 100

​
filter [optional]

A filter specifying which entities to collect the specified facts for. Matches the filter format used by the Catalog API. The dataset-schema fact in particular is only relevant to datasets, and so by default the No-Code UI has filters for Kind:Api, Type:dataset.

​
exclude [optional]

Entities matching this filter will be skipped during the fact collection process. Can be used in combination with filter. Matches the filter format used by the Catalog API.
filter:
  - kind: component
exclude:
  - spec.type: documentation

​
cache [optional]

If the collected facts should be cached, and if so for how long. Possible values are either true or false or a nested { duration: HumanDuration } field. If not provided, the fact will not be cached. Example:
cache:
  duration:
    hours: 24

​
Shape of A Data Registry Fact

The shape of a Data Registry Fact is based on the Fact Schema. The following is an example of the collected dataset-schema fact:
factRef: data-registry:default/dataset-schema
entityRef: component:default/test-dataset-1
data:
  fields:
    - name: user_id
      type: varchar
      description: unique identifier for the user
    - name: num_connections
      type: int2
      description: number of connections associared with the user
timestamp: 2025-02-20T15:20:35Z
See Software Catalog’s descriptor format documentation for more details about the shape of an entity.

​
Shape of A Data Registry Check

The shape of a Data Registry Check matches the Shape of a Check. The following is an example of a Data Registry check:
- id: all_dataset_fields_have_descriptions
  rule:
    all:
      - factRef: data-registry:default/dataset-schema
        path: $.fields[*].description
        operator: all:matches
        value: .+
  schedule:
    frequency:
      cron: '* * * * *'
    filter:
      kind: 'Api'
  passedMessage: |
    All fields in the dataset schema have a populated description!
  failedMessage: |
    At least one field in the dataset schema has an empty string for the description.
